Application
Application of demand across alI need to make two different Products throUgh the same valve to Prevent mixed operation. Mainly used in brewing，dai ry products，beverages and othe r food industry.
Operating Principles

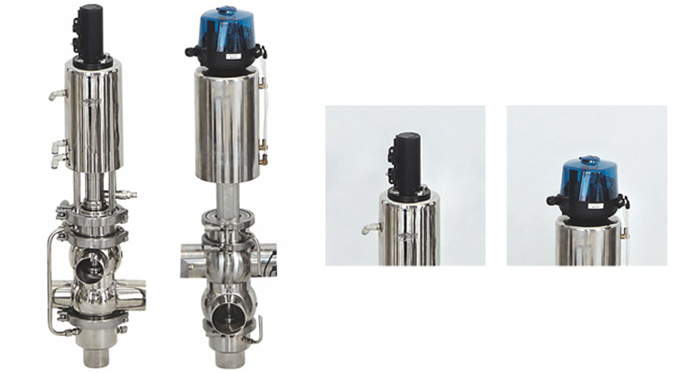

Dz two-seat anti—mixing valve series is remotely operated by cornpressed air. The valve to normally closed .
This type of valve has two independent valve seal,in the normal working state of the two seals will be formed between a is communicated with the air leakage chamber. In accidents or occasionaIl leakage, Products will flow into the leaky cavities and from the outletis discharged out, will not cause Product contamination or mixing;when the valve is in the open state, the drain cavity is closed ,the valve during normal operation there is no Product overflow condition.Therefore the delivery of Products from a pipeline flow to another.This type of valve for CIP cleaning.
MUYE two-seat valve series ZK3 intelligent controller is equipped with a Makino company not only can realize remote control of the valve seat, also can realize the real—time monitoring of the working status of the valve. Also can be equipped with position sensor.
MUYE two—seat valve series can be installed through the adapter board l066 control and PowerLeader company match.
Action
The use of MUYE two-seat valve can ensure that it is processing enterprises hygiene and asepsis requirement, ability to create multiple access process automation. Realize the production process to the needs of modernization and cleaning cycle and action, in order to achieve the maximum utilization of plant, as well as some process operation optimization of economy, two-seat valve technology to ensure product or the cleaning liquid all the complex pathway system in isolation from each other, schematic diagram show how by the valve in the array. Under the combination between ports, establishment method of automatic access system from a series of tank containers to multiple pipelines.
Technical data
| Material | Contact product parts | 316L(1.4404) |
| non-contact product parts | 304(1.4301) | |
| Provide EN 10204 3.1B certificate | ||
| Seal material | Standard | MEPD |
| Option | NBR\FPM\Silicone | |
| All seal materials comply with FDA 177.2600 | ||
| temperature | Running working temperature | -20～+135℃(EPDM) |
| Aterilization temperature | 150℃(Max 20min) | |
| pressure | Working pressure | 0～5bar |
| Accepting high pressure requirement | ||
| Control air pressure | 6～8bar | |
| suface treatment | Internal surface | Ra≤0.8μm |
| External surface | Grit blasting | |
| connection | Connection standard | welded end:DIN 11850 series2 |
| welded end:INCH pipe standard | ||
| Connection method:welding、thread、clamp、flange | ||
| option | Intelligent controller | 24V DC |
| 1/3 electromagnetism valve | ||
| Position sensor | 24V DC | |
| 2/3/4 NPN/PNP position sensor | ||
