application
DC single seater valve used to be very flexible and meets the design requirements of health, mainly used in the pipeline system is no pollution or mixed pipeline material, is a modern, more extensive application of the value, mainly used in brewing, dairy, beverage, pharmaceutical and other industries.
operational principle
DC series of single-seat valve is remotely operated by compressed air, the relative position of the control valve to open and close the valve purpose (section), or change the media flow (reversing).

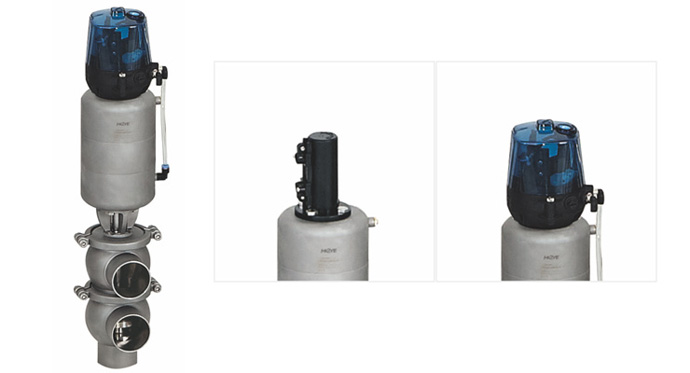

Remote control of intelligent ZK3 controller with MUYE's DC single-seat valve series can not only realize the single-seat valve, and can realize the value workTimely feedbace real-time monitoring status and signal. Also can be equipped with position sensor.
DC single seater valve series by installing the adapter plate and PowerLeader company the 1066 controller match.
The executive device function
downward movement by pneumatic actuator spring reset.
up movement by pneumatic actuator spring reset.
up or downward movement by pneumatic actuator.
Technical data
| Material | Contact product parts | 316L(1.4404) |
| non-contact product parts | 304(1.4301) | |
| Provide EN 10204 3.1B certificate | ||
| Seal material | Standard | MEPD |
| Option | NBR\FPM\Silicone | |
| All seal materials comply with FDA 177.2600 | ||
| temperature | Running working temperature | -20～+135℃(EPDM) |
| Aterilization temperature | 150℃(Max 20min) | |
| pressure | Working pressure | 0～5bar |
| Accepting high pressure requirement | ||
| Control air pressure | 5～8bar | |
| suface treatment | Internal surface | Ra≤0.8μm |
| External surface | Grit blasting | |
| connection | Connection standard | welded end:DIN 11850 series2 |
| welded end:INCH pipe standard | ||
| Connection method:welding、thread、clamp、flange | ||
| option | Intelligent controller | 24V DC |
| 1/2 electromagnetism valve | ||
| Position sensor | 24V DC | |
| 2/NPN/PNP position sensor | ||
