Application

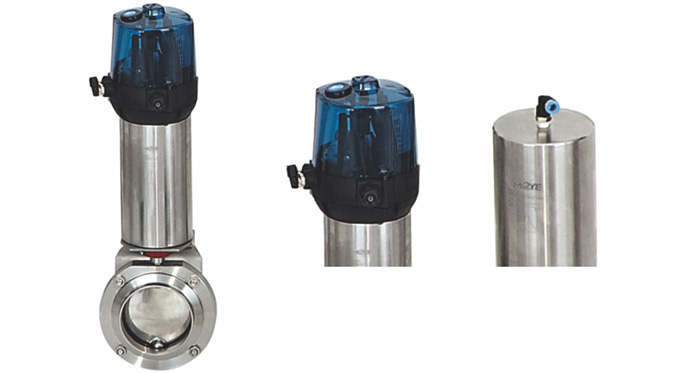

DV series butterfly valve is a sanitary type, automatic or manual operation of the valve,all kinds of application suitable for stainless steel piping system.
Operational Principle
DV series valve can be through a pneumatic head remote operation, also can be operated manually by a handle.
The actuator has three kinds of standard models, which is normally closed (NC), normally open (NO) and air/air (A/A).
The actuator will convert the axial movement of a piston 90 ℃ rotating value shaft.Come into with contact with the valve sealing when circular disc value body.Ring the actuator torque increase, close the valve.
Select the handle of the manual operation of the valve can be mechanical locking in the open and close, intermediate or other location, achieving the realization of the flow.
Technical data
| Material | Contact product parts | 304L/316L(1.4404)forged |
| non-contact product parts | 304(1.4301) | |
| Provide EN 10204 3.1B certificate | ||
| Seal material | Standard | MEPD |
| Option | NBR\FPM\Silicone | |
| All seal materials comply with FDA 177.2600 | ||
| temperature | Running working temperature | -20～+135℃(EPDM) |
| Aterilization temperature | 150℃(Max 20min) | |
| pressure | Working pressure | 0~10bar |
| Control air pressure | 5~8bar | |
| suface treatment | Internal surface | Ra≤0.8μm |
| External surface | Ra≤1.6μm | |
| connection | Connection standard | welded end:DIN 11850 series2 |
| welded end:INCH pipe standard | ||
| Connection method:welding、thread、clamp、flange | ||
| option | Intelligent controller | 24V DC |
| 1/2 electromagnetism valve | ||
| Position sensor | 24V DC | |
| 2 NPN/PNP position sensor | ||
